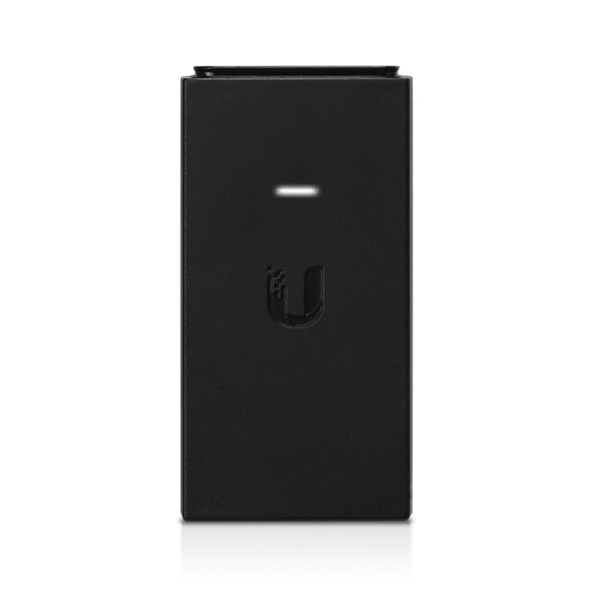

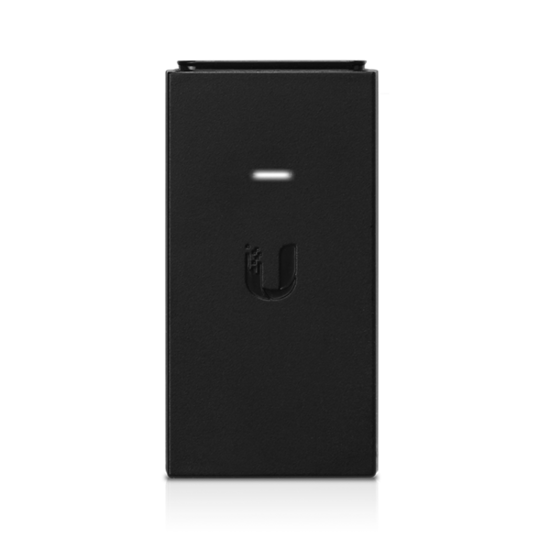

Ubiquiti Power Supply POE-24-12W-G

SKU: OS466
Proizvođač: Ubiquiti

Ubiquiti PoE Adapter pruža niz mogućnosti za zaštitu vaših PoE uređaja:

      • Zaštitu od strujnog udara
      • Zaštitu od stezanja
      • Maksimalno prenaponsko pražnjenje
      • Maksimalna impulsna struja
      • AC kabl sa uzemljenjem

Elektrostatičko pražnjenje (ESD) je glavni uzročnik uništavanja spoljnih uređaja.

Možete efikasno zaštititi uređaje od ESD oštećenja pomoću uzemljenih Ubiquiti PoE adaptera, TOUGHCableTM i TOUGHCable konektora.



Specifikacije:

Dimensions 87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
Weight 99.4 g (3.51 oz)
Output Voltage 24VDC @ 0.5A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button Yes
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current <30A Peak @ 120VAC, <60A Peak @ 230VAC
Efficiency 75+%
Output Ripple 1% Max.
Switching Frequency 50 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering -
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
