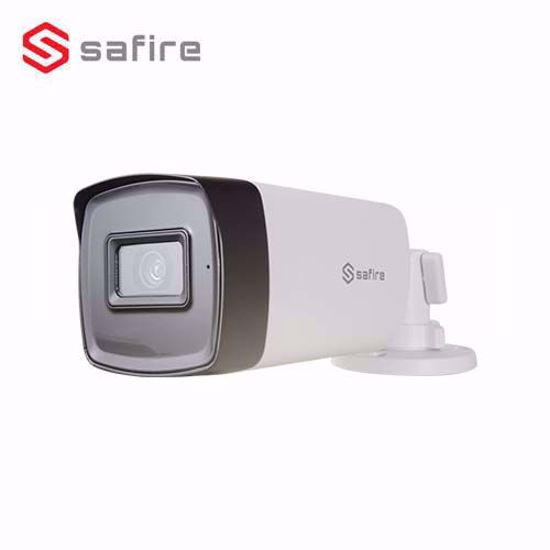

Safire SF-B023A-5P4N1-0600 bullet kamera
- 5 Megapíxel Resolution
- High Performance CMOS Sensor
- 6 mm Fixed Lens
- Smart IR Up to 40 m
- Built-in Mic Audio over Coaxial
- Digital DWDR | 2D DNR
- IP67 Weatherproof
Specifikacije:
| Image Senzor |
5 MP CMOS |
| System |
PAL/NTSC |
| Resolution |
2560 (H) × 1944 (V) |
| Frame Rate |
TVI: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps<br/>AHD: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps<br/>CVI: 4 MP @ 30 fps, 4 MP @ 25 fps<br/>CVBS: PAL/NTSC |
| Illumination |
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed |
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Lens |
2.8 mm, 3.6 mm, 6 mm fixed focal lens |
| Field of View |
2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°<br/>3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°<br/>6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°<br/> |
| Aparature Lens |
M12 |
| Day/Night |
IR Cut Filter |
| WDR |
Digital WDR |
| Angle adjustment |
Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Image mode |
STD/HIGH-SAT |
| AGC |
Yes |
| Day/Night mode |
Auto/Color/BW (Black and White) |
| White balance |
Auto/Manual |
| Mode AE (automatic exposition) |
BLC;HLC;Global;DWDR |
| Reduction |
2D DNR |
| Language |
English |
| Functions |
Sharpness;Mirror;Brightness;Smart IR |
| Video formats |
Switchable TVI/AHD/CVI/CVBS |
| Microphone |
Built-in mic |
| Working conditions |
-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Current |
12 VDC ± 25% |
| Consumation |
Max. 4.5 W |
| Protection |
IP67 |
| Material |
Front cover: Metal, Main body: Plastic |
| Range IR |
Up to 40 m |
| Comunication |
Safire-C |
| Dimensión |
78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53") |
| |
Approx. 338 g (0.75 lb.) |
