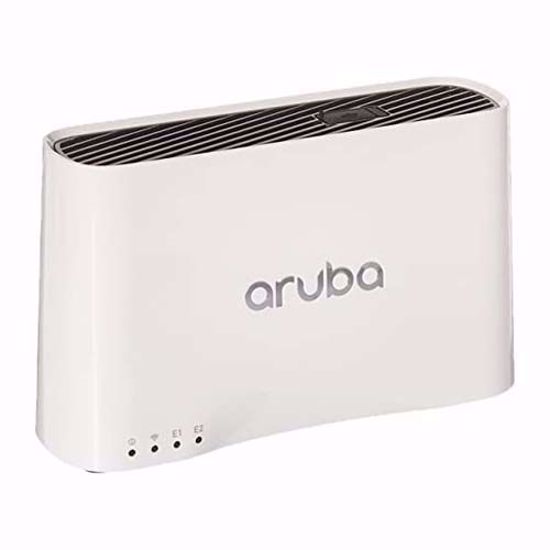

NET HP Aruba AP-203R (RW) Unified Rem Access Point

SKU: OS531

Ports

(1) 10/100/1000BASE-T RJ-45 (uplink) (2) 10/100/1000BASE-T RJ-45 (local)

Mounting

Supports desk mount without additional accessories. A cover ships with the AP to hide connectors, cables and product labels. The cover can be used to support wall mounted deployments.

Connectivity, standard

IEEE 802.11a/b/g/n/ac

Input voltage

90 – 265 VAC, 47 – 63Hz

Power Consumption

8.2W maximum (worst-case), 5.0W in idle mode (worst-case).

Certifications

CB Scheme Safety, cTUVus Wi-Fi Alliance (WFA) certified IEEE 802.11a/b/g/n/ac
Regulatory  FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/E UL/IEC/EN 60950 EN 60601-1-1 and EN 60601-1-2
Wi-Fi antenna  Two integrated dual-band moderately directional antennas for 2x2 MIMO with maximum individual antenna gain of 0.9 dBi in 2.4 GHz and 2.9 dBi in 5 GHz. Built-in antennas are optimized for vertical orientation of the AP. Combining the patterns of each of the antennas of the MIMO radios (in 2x2 mode), the peak gain of the effective per-antenna pattern is -1.0 dBi in 2.4 GHz and 0.9 dBi in 5 GHz.

Minimum dimensions

( H x W x D)

95 x 155 x 50 mm

Weight

320 g
