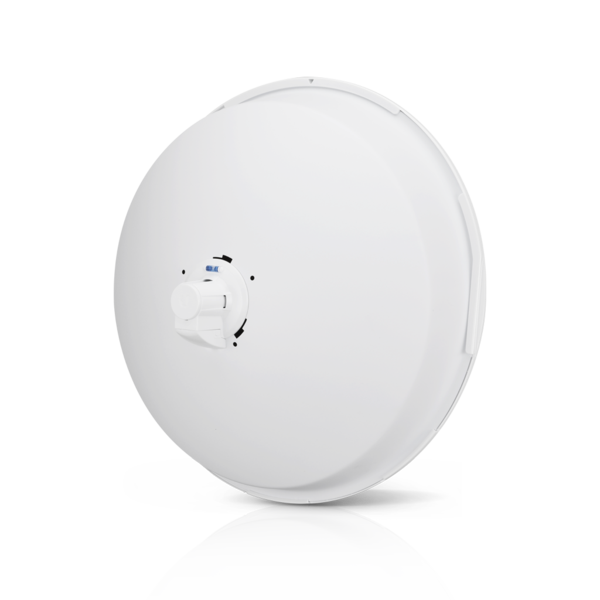

Ubiquiti PBE-5AC-ISO-GEN2-EU, eksterni Access point

airMAX PowerBeam AC 5 GHz ISO Bridge - Ubiquiti WiFi most/Access point od 5 GHz sa 450+ Mbps stvarnog TCP/IP protoka i poboljšanom zaštitom od prenapona.
SKU: UB024
Proizvođač: Ubiquiti

AirMAX PowerBeam AC 5 GHz ISO Bridge podržava do 450+ Mbps stvarne TCP/IP propusnosti i ima poboljšanu zaštitu od prenapona. Poseduje zadnje kućište sa metalnom unutrašnjošću, dizajnirano da poboljša RF zaštitu. Pored toga, uključeni zaštitni omotač štiti PowerBeam 5AC ISO od najtežih prirodnih elemenata. Integrisani dizajn izolatora prostorno filtrira smetnje, tako da PBE-5AC-ISO pruža poboljšanu otpornost na buku u ko-lokacionim primenama.



Specifikacije:

PBE-5AC-Gen2
Dimensions 420 x 420 x 230 mm
(16.54 x 16.54 x 9.06")
Weight 2.22 kg
(4.89 lbs)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption 8.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20 to 26VDC
Gain 25 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB
LEDs Power, Ethernet, (4) Signal Strength
Channel Sizes
PtP Mode
PtMP Mode

10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Enclosure Characteristics
Antenna Feed
Dish Reflector

Outdoor UV Stabilized Plastic
Powder-Coated SPCC
Mounting Pole-Mounting Kit (Included)
Wind Loading 380 N @ 200 km/h (85.4 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 - 95% Condensingtd
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Certifications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 5150 - 5875
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150 - 5250
5250 - 5350
5470 - 5725
5725 - 5850
Management Radio (MHz)
Worldwide 2412 - 2472
USA 2412 - 2462
