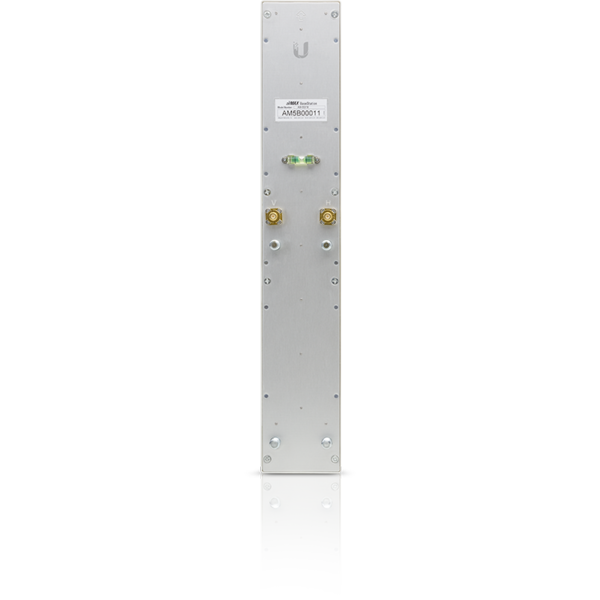

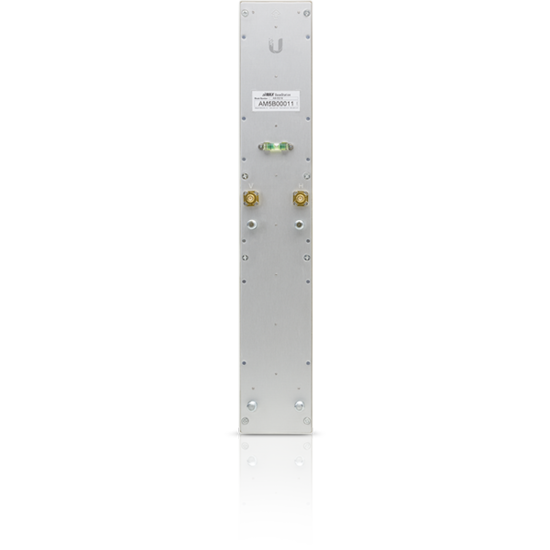

Ubiquiti AM-5G16-120, airMAX BaseStation antena

SKU: UB033
Proizvođač: Ubiquiti

airMAX® 2x2 BaseStation sektorska antena. Uparite airMAX® sektorsku antenu sa Rocket™M BaseStation za pokrivenost sektora u mrežama Point-to-MultiPoint (PtMP).



Specifikacije:



Dimensions (mm) 367 x 63 x 41
Weight 1.1 kg
Frequency Range 5.10 - 5.85 GHz
Gain 15.0 - 16.0 dBi
HPOL Beamwidth 137° (6 dB)
VPOL Beamwidth 118° (6 dB)
Electrical Beamwidth
Electrical Downtilt
Max. VSWR 1.5:1
Wind Survivability 125 mph
Wind Loading 6 lbf @100 mph
Polarization Dual-Linear
Cross-pol Isolation 22 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
