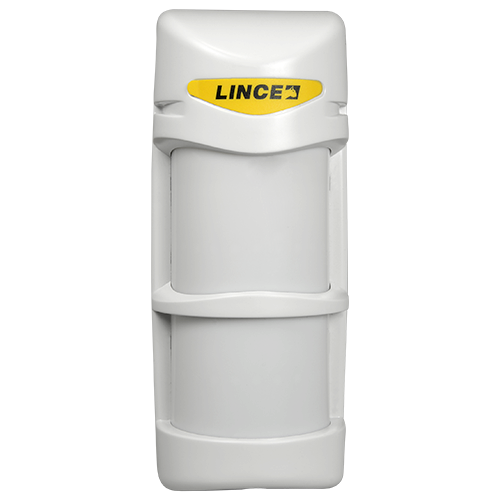

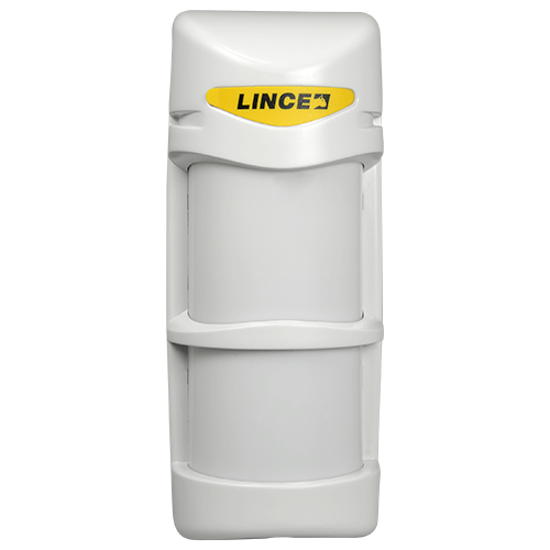

LINCE-1926-RCDAM detektor pokreta za spoljnu montažu

PIR detektor zavese niske potrošnje. Kompatibilan sa radio predajnikom. Dvostruki PIR, mikrotalasni senzor i antimasking. Detekcija 10m / 5º. Snaga baterije 3~9 VDC. Spoljna montaža.



Specifikacije:

Technology Double technology: Microwaves (24 GHz) and double volumetric PIR
Detection range 10 m / 5º / Installation 1.2 m
Pet immunity Available
Masking Available
Sensitivity Adjustable. 4 levels (DIP switch)
Tamper-resistant opening Available
LEDs indication Alarm (PIR1, PIR2 and MW)
DIP switch configuration PIR sensitivity (4 levels), AND/OR function (PIR1, PIR2 and MW), Antimasking sensitivity, LEDs, battery saving mode (inhibition after 1 or 2 events during 30s or 180s) )
Wired outputs Alarm (NC/NO), Power, Antimasking (NC/NO) and Tamper (NC/NO)
Power 3~9 VDC via battery / Minimal power consumption (Standby): 10 μA)
10~15 VDC through power supply
Temp. operation -25ºC ~ +60ºC
Degree of protection IP45 Suitable for outdoor
Dimensions for transmitter 148 (H) x 41.5 (W) x 26.5 (D) mm
Dimensions 189(H) x 98(W) x 81(D)mm / 820g
