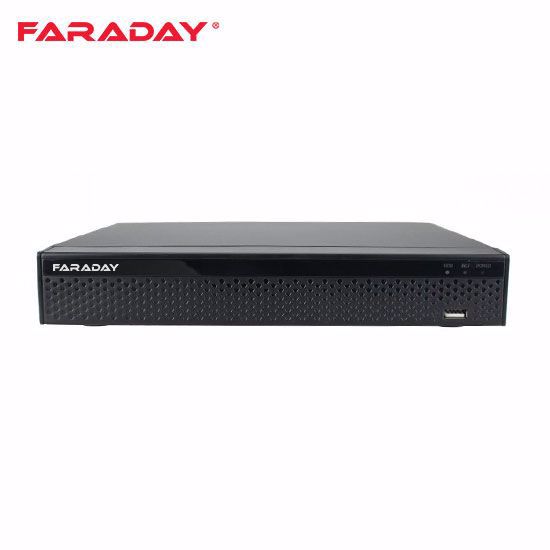

Faraday FDL-5008XVR-S3L 8-kanalni snimac

Podržava AHD/CVI/TVI/IP/Analog ulaz za kamere; • Do HD 5MP i IP 5MP rezolucija snimanja; • Podržava HD izlaz, VGA i CVBS Video izlaz; • Podržava Maks. 8CH HD ili 16CH IP kamere; • Podržava 1 SATA HDD do 8TB;
SKU: FD359
Proizvođač: FARADAY

Faraday FDL-5008XVR-S3L 8-kanalni snimac

Podržava AHD/CVI/TVI/IP/Analog ulaz za kamere;

• Do HD 5MP i IP 5MP rezolucija snimanja;
• Podržava HD izlaz, VGA i CVBS Video izlaz;
• Podržava Maks. 8CH HD ili 16CH IP kamere;
• Podržava 1 SATA HDD do 8TB;



SPECIFIKACIJE:

System
Main Processor MC6630
Operating System Embedded LINUX
Video
Input Normal Mode: Analog: 8*(TVI/AHD: 5M@12fps;
AHD/TVI/CVI: 4M@15fps;  AHD/TVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P;
Analog: 960H)
Analog+Network: 2*Analog(5MP)+7*network(MAX 5MP),
4*Analog(5MP)+5*
network(MAX 5MP),6*Analog(5MP)+3*network(MAX 5MP)
Network: 16*5MP/4MP/3MP/1080P/960P/720P
(Total incoming bandwidth≤48M)
Input 8CH BNC
Signal Type Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output 1HD,1 VGA, CVBS
Audio
Input 2 Channel, RCA,,support AOC
Two-way Audio NO
Output 1 Channel, RCA
Alarm
Sensor Input 4 CH
Output 1 CH
Motion Detection 8 Channel(max 16 Channel in pure network mode)
Trigger Events Recording,  Email, Screen tips, Buzzer, Push notifications(motion detection)
Email Alarm Send Image to The Designated E-mail
AI Function
Face Comparison YES
PTZ
Interface RS485
Protocol Pelco-D, Pelco-P
Baud Rate 110~921600
Address 0~255
Display
VGA Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720 60Hz,
1024 × 768/60Hz
HD Output Resolution: 1920 × 1080P/60Hz,  1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz
Display Split 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking 3 Rectangular Zones (Each camera)
OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression H.265+/H.265/H.264+/H.264
Audio Compression G.711U/G.711A
Resolution 5MP_Lite(1296×1952),4MP_Lite(1280×1440),3MP_Lite(1024×1536),
1080N(960×1080),720P(1280×720),960H(P:960×576/N:960×480)
Video Quality Lowest/Low/Ordinary/Good/Better/Best
Record Rate Analog:  PAL: 5MP_Lite(1296×1952 8*6fps),4MP_Lite(1280×1440 8*8fps),
3MP_Lite(1024×1536 8*10fps),1080N(960x1080 8*15fps),
720P(1280×720 8*15fps), 960H(960×576 8*25fps)
NTSC:5MP_Lite(1296×1944 8*6fps),4MP_Lite(1280×1440 8*8fps),
3MP_Lite(1024×1536 8*10fps),1080N(960x1080 8*15fps),
720P(1280×720 8*15fps), 960H(960×576 8*30fps)
Pure IP(H.265):
PAL: 5MP@8×25fps,4MP@12x25fps,3MP@12×25fps,1080P@12×25fps,
960P@12×25fps,720P@12×25fps,D1@12×25fps
NTSC: 5MP@8×30fps,4MP@12×30fps,3MP@12×30fps,1080P@12×30fps,
960P@12×30fps, 720P@12×30fps, D1@12×30fps
Record Mode Manual\Timer\Motion Detection\Alarm Input
Playback & Backup
Decode Capability 2CH 1080P@30fps
Sync Playback Pure Analog: 4CH 960H@25fps, 4CH 720P@15fps, 4CH
1080N@15fps, 4CH 5M_LITE@6fps, 4CH 4M_LITE@8fps,
4CH 3M_LITE@10fps;
Mixture mode: 4CH 720P@25fps, 2CH 1080P@25fps, 1CH 5MP@25fps
Pure Network: 4CH 720P@25fps, 2CH 1080P@25fps, 1CH 5MP@25fps
Remote Playback 4 Channel / 1Channel
Search Mode ALL,Channel,Manual,Time,Date,Motion Detection,Alarm,Motion and Alarm
Playback Functions Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back,
Digital Zoom, Full screen
Smart Phone Playback 4 Channel
Backup Mode USB Device(with fomat FAT 32 )/Network/FTP
Network
Interface 1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNS Dyndns,changeip,no-ip,Oray,A-PRESS,MYQSEE,SKDDNS,SMART-EYES,
ZEBEYE,HDPROVN
Web Browser Edge,IE8-11, Google Chrome , Firefox ,Safari
CMS Software Support  Windows 7/ Windows 8/Windows 10
Extra Stream CIF/D1(1-12fps)
Smart Phone iPhone, ipad,  Android ,Android pad
Hard Disk Driver
Interface Type 1 SATA Interface
Capacity 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
General
Language Simplified Chinese,Traditional Chinese, English, Polish, Czech, Russian,
Thai, Hebrew, Arabic, Bulgarian, Japanese, German,
French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian,
korean, Dutch, Greek, Vietnamese,
UTC Control YES
USB Interface 2 USB 2.0 Interfaces
Power consumption DC 12V/2A  ≤6W (Without Hard Disk)
Working Environment -10~55℃/10~90%
Dimension (W×D×H) 260*215*43(mm)
Weight 2kg (Without HDD)
