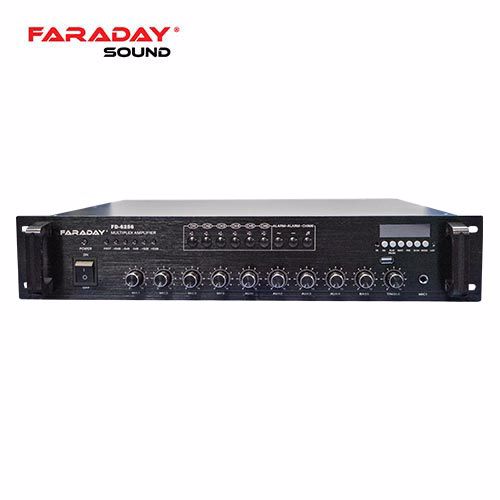

Faraday FD-6256 audio pojačalo sa 6 zona.
Ugrađeni MP3, USB i BT. 2U standardno 19-inčno industrijsko kućište, ergonomski dizajn, sofisticirana tehnologija; 3 kanala Mic ulaza, 2 kanala audio ulaza, pomoćni audio izlaz, 2 kanala EMC ulaza. Mic 1 ima najveći prioritet, ostali kanali imaju druge prioritete; 2 kanala Mic Line ulaza (osetljivost linijskog ulaza MIC2 / MIC3 je 775mv); Mic i Aux imaju visokotonce za kontrolu jačine zvuka, dugme za kontrolu tona basa; Izlaz pojačala dolazi sa šest particija, možete odabrati stanje particije.
|
Model
|
FD-6156
|
FD-6256
|
FD-6356
|
FD-6456
|
FD-6556
|
FD-6656
|
|
Rated Power Output
|
150W
|
250W
|
350W
|
450W
|
550W
|
650W
|
|
Speaker Outputs
|
70V, 100V & 4~16Ω
|
|
Input Sensitivity & Impedance
|
MIC 1, 2, 3: 5mV/600Ω
|
|
MIC 2, 3 Line Input: 775mV/10KΩ, Unbalanced RCA Screw Input
|
|
AUX 1, 2: 350mV/10KΩ, Unbalanced RCA Screw Input
|
|
Output Sensitivity & Impedance
|
MIX OUT: 1000mV/470Ω, Unbalanced RCA Screw Output
|
|
Overloadsourceelectromotive force
|
MIC 1, 2, 3: >12dB, Unbalanced TRS Screw Input
|
|
MIC 2, 3 Line Input: >12dB, Unbalanced RCA Screw Input
|
|
AUX 1,2,3,4: >20dB, Unbalanced RCA Screw Input
|
|
MP3: >20dB, Unbalanced Input
|
|
EMC: >12dB, Unbalanced DG7.62 Screw Input
|
|
Tone
|
Bass:±10dB at 100Hz
|
|
Treble:±10dB at 10KHz
|
|
Frequency Response
|
50Hz~16KHz(+1dB, -3dB)
|
|
S/N Ratio
|
MIC 1, 2, 3: 66dB; AUX 1, 2: 80dB
|
|
THD
|
1KHz 0.5%, 1/3 Output Power Consumption
|
|
Muting Function
|
MIC 1 overrides other input signals
|
|
0-30 dB adjustable
|
|
Crosstalk
|
≤50dB
|
|
Cooling
|
Forced air from front to rear, start built-in fan when radiator temperature reaches 45 degrees
|
|
Protection
|
Over heat, over load & short circuit
|
|
Power Supply
|
AC220V/50Hz
|
|
Power Consumption
|
260W
|
450W
|
700W
|
950W
|
1200W
|
1600W
|
