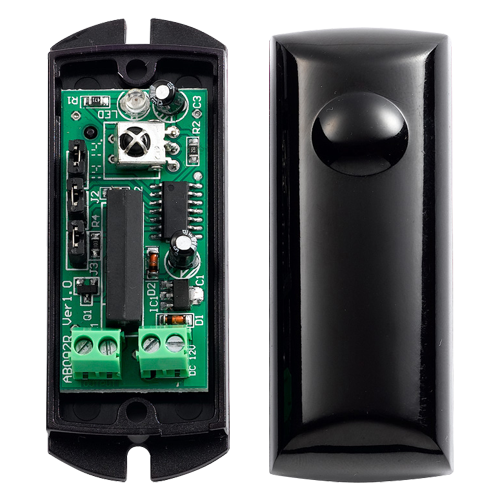

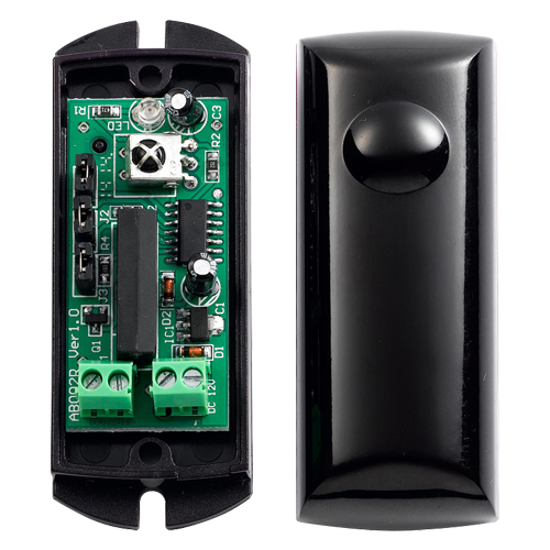

ABO-20F fotocelija

Infracrveni detektor barijere Žični | 1 snop/zrak Maksimalna udaljenost detekcije 10/20 m Manje veličine i laka instalacija Relej Napajanje 9~16VDC/VAC
SKU: VT0066

Specifikacije:

Detection range 20m indoor / 10 m outdoor
Number of beams 1
Detection method Infrared beam interruption
Frequency channels 4 different channels over DIP Switch
Alarm outputs 1 relay NO/NC (max. 36VDC/VAC, 1A)
Adjustment method Over LED
Operating temperature -25ºC ~ +55ºC
Power 9~16 VDC/VAC, 20 mA max.
Dimensions 69.5 (H) x 26.4 (W) x 22.5 (D) mm
